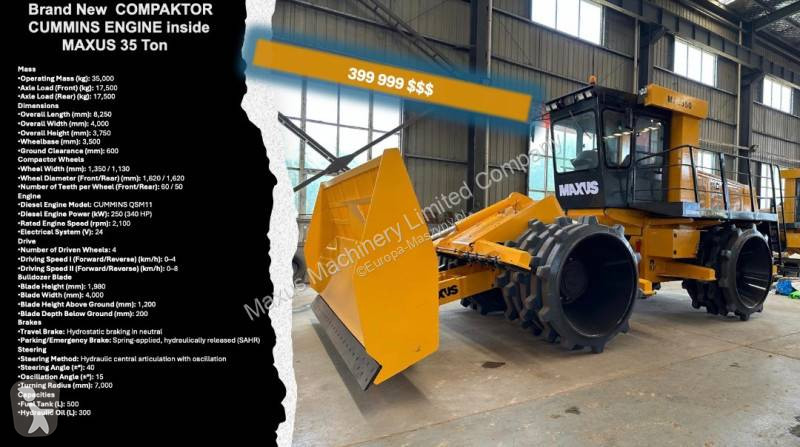

Compactador de basura Maxus 35 ton Diesel nuevo

Electronic diesel engine by CUMMINS.
Four separate hydrostatic drive systems are computer-controlled with feedback-free proportional electric control by DANFOSS.
Teeth designed for high durability. Each compactor wheel is equipped with two scraper bars and two wire cutters.
The hydraulic steering and blade lifting system is powered by a piston pump with a load-sensing system.
Sealed and comfortable driver’s cabin with dual side doors, air conditioning for heating and cooling.
Integrated Rollover Protective Structure (ROPS) with a sealed, arc-shaped tubular design.
Hydrostatic service brake, spring-applied hydraulically released (SAHR) parking and emergency brake system on all four wheels.
The reverse-mounted engine drives the hydraulic pumps via the gearbox, with protective walkways and ladders on both sides.
An infrared vehicle monitoring system and a backup buzzer provide convenience and enhanced driver safety with improved rear visibility.

Mass
Operating Mass (kg): 35,000
Axle Load (Front) (kg): 17,500
Axle Load (Rear) (kg): 17,500
Dimensions
Overall Length (mm): 8,250
Overall Width (mm): 4,000
Overall Height (mm): 3,750
Wheelbase (mm): 3,500
Ground Clearance (mm): 600
Compactor Wheels
Wheel Width (mm): 1,350 / 1,130
Wheel Diameter (Front/Rear) (mm): 1,620 / 1,620
Number of Teeth per Wheel (Front/Rear): 60 / 50
Engine
Diesel Engine Model: CUMMINS QSM11
Diesel Engine Power (kW): 250 (340 HP)
Rated Engine Speed (rpm): 2,100
Electrical System (V): 24
Drive
Number of Driven Wheels: 4
Driving Speed I (Forward/Reverse) (km/h): 0–4
Driving Speed II (Forward/Reverse) (km/h): 0–8
Bulldozer Blade
Blade Height (mm): 1,980
Blade Width (mm): 4,000
Blade Height Above Ground (mm): 1,200
Blade Depth Below Ground (mm): 200
Brakes
Travel Brake: Hydrostatic braking in neutral
Parking/Emergency Brake: Spring-applied, hydraulically released (SAHR)
Steering
Steering Method: Hydraulic central articulation with oscillation
Steering Angle (±°): 40
Oscillation Angle (±°): 15
Turning Radius (mm): 7,000
Capacities
Fuel Tank (L): 500
Hydraulic Oil (L): 300
