Trituradora Constmach 60-80 T/H Vertical Shaft Mobile Jaw And Impact Crusher 2 Year Warranty nueva

You can call us 24/7 for the jaw and vertical shaft crusher plant for sale.

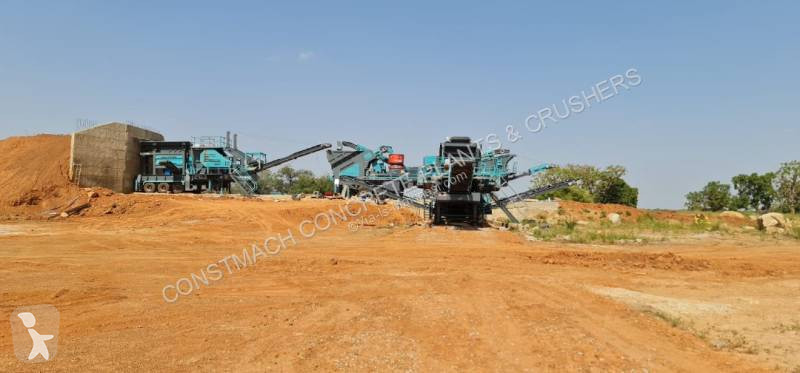

CONSTMACH, which offers high-performance and durable mobile stone crushing solutions, is making a difference in the sector with the JCV-1 model. while providing an effective and efficient crushing process with a production capacity of 60-80 tph, it can easily process large parts with a maximum feed size of 610 x 3800 mm.

the feeding height of 3.8 meters provides a user-friendly operation, while performing a comprehensive crushing and screening process with a primary jaw, secondary cone, VSI and vibrating sieve configuration. This mobile crusher, which exhibits a strong performance with a total motor power of 370 kW, also keeps energy efficiency at the forefront with the requirement of a 750 kVA electricity generator.

weighing 90 tons, the plant has three chassis on wheels equipped with hydraulic drop-down legs. This structure allows the mobile crankcase to be installed quickly and easily in the field. The first chassis is 10 meters long and 3.1 meters wide, while the second and third chassis are 17 meters long and 3.8 meters wide and 4.4 meters high.

CONSTMACH JCV-1 offers superior performance and durability in mobile stone crushing operations. It is a reliable solution partner in your projects with its advanced technology and user-friendly design. This mobile crusher reduces your costs while speeding up your work and works smoothly even in the most demanding conditions. It is an ideal choice for those who are looking for high efficiency and portability.

JCV-1 - Mobile Jaw and Vertical Shaft Crusher Technical Specifications

Production capacity 60-80 tph
Maximum Feeding Size 610 x 3800 mm
Feeding Height 3.8 meters
Main Configuration Primary Jaw + Secondary Cone + VSI+ Vibrating Screen
Total Motor Power 370 kW
Electricity Generator Requirement 750 kVA
The weight of the plant is 90 tons (the total weight of the three chassis)
Dimensions of the Facility
Chassis: 10(L) x 3.1(W) x 4.4(H) meters
Chassis: 17(L) x 3.8(W) x 4.4(H) meters
Chassis: 17(L) x 3.8(8) x 4.4(H) meters
Chassis Type Three chassis on wheels equipped with hydraulic opening legs
